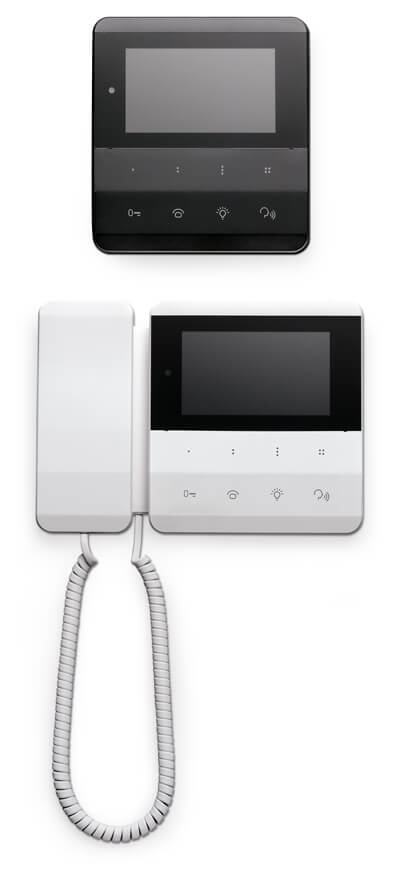

A hands-free or handset indoor video door phone
Intuitive to use, elegant and sophisticated in design, and made to match all styles of décor. All controls are located on the front of the unit for easy access and immediate use.
Completely designed and made in Italy. Available in two colours: black and white.
PLEATS is the most user-friendly IP video door phone on the market today, whether used in hands-free mode or with a handset. PLEATS can be installed using all standard recessed back boxes such as the classic 3-module box.
Display 4.3"
A generous 4.3” high definition, animated colour monitor provides essential information like date and time and also displays incoming messages.
Ringtones
Various interchangeable ringtones can be selected to identify entrance panel, intercommunicating and doorbell calls.
Hearing aid
T-Coil technology is incorporated to ensure clear communications even for hearing aid users.
Low profile
Slender, compact shape thanks to a flush-fitting display and an innovative handset design.
Capacitice LED lit buttons
Simple icons with a common PLEATS family feeling. Buttons light up at a single touch and flash once the function is selected.
Presence sensor
The unit automatically detects your presence, illuminates display and icons for excellent visibility at all times of day.
Note: the products of the Pleats series will be available from 2018.
Download the Video Door Phone Pleats brochure >>
Technical specification
• Fast, powerful ARM CortexTM A8 Core, 1 Ghz processor
• RJ45 connection with PoE power supply
• 4.3” TFT LCD display, 480 x 272 resolution
• Fast Ethernet 10/100 IEEE 802.3at controller
• Capacitive buttons with presence sensor
• DSP stereo class-D CODEC noise cancelling
• 1 generic alarm input
• 1 panic alarm input
• 1 doorbell button input
• 1 relay for connection to a supplementary chime unit
• 1 connection for supplementary power supply
• 1 USB 2.0 OTG port
• For hearing aid users in articles Z400A, Z400A.40, Z401A and Z401A.40
