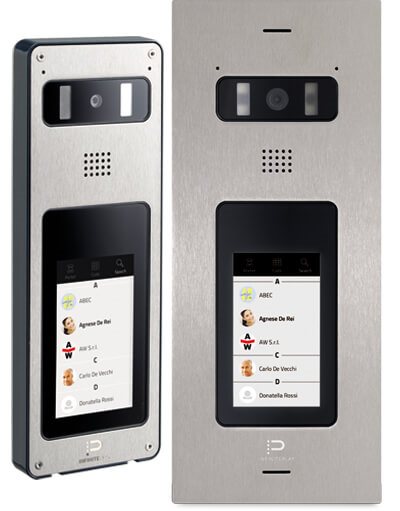

Audio Video entrance panel FLAT
InfinitePlay entrance panels are designed to withstand vandalism, heavy rain and the worst weather. The front cover is made from AISI 316 Scotch Brite brushed stainless steel to resist even the most aggressive atmospheres.
Glass parts are made from ultra-strong, scratch-proof glass.
Versatility
Two types of keypad are available, both with no moving parts.
Z1001 with illuminated name buttons for 1 to 4 user systems.
Z100D with touch-screen for scrolling name searches and for displaying additional information like the floor and staircase number of offices. Thanks to touch-screen technology, there are no limits to the number of internal users.
Comfort
The generous 4.3” sun-readable display allows users to communicate with visitors via images and status messages (e.g. “calling”, “talking”, “door opening”, “call ended”).
You can also record an automatic answer on your video door phone to display to visitors at the entrance panel. This is an extremely useful function for shops and offices wishing to display their opening days/times.
The microphone uses noise cancelling technology to eliminate background noise from busy roads.
The touch-screen display also provides a numeric keypad for opening doors by entering a pre-programmed code.
Doors can also be opened via InfinitePlay app on your smartphone.
Technical specifications
- 5 Mpx video camera for high resolution images and superb contrast in all lighting conditions
- 4 high-efficiency LEDs for night-time illumination
- RJ45 connector with PoE power supply
- Dimension 262x95mm, only 19mm thick
- No special back boxes required.
The Entrance Panel can be installed in standard vertical 3-module back boxes or round back boxes - Visitor detection sensor
- Optional rain hood
- Various aesthetic finishes
- The entrance panel can be installed using most commercial back boxes
